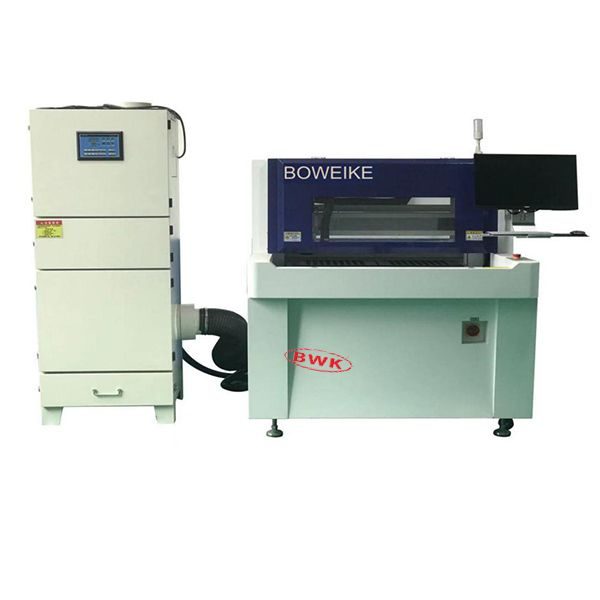

功能项Function item | 硬件要求hardware requirements |
X、Y轴切割速度 Shear Speed of X,Y axis | 0-100mm/s(必须项) 0-100mm/s |
X、Y、Z轴驱动速度Drive speed of X,Y,Z axis | X、Y轴至少700mm/s，Z轴至少300mm/s，伺服马达方式驱动(必须项)X、Y axis at least 700mm/s，Z axis at least 300mm/s, by motor drive servo |
机台重复精度Accuracy of Repeat | ±0.01mm ±0.01mm |
工作区域（可加工行程）Work Area | X:350mm，Y1：330mm，Y2：330mmZ：0-50mm（必须项） |
切割PCB厚度范围PCB Thickness | 0.5-2mm，或范围更大0.5-2mm，or wider |
切割精度 Shear Accuracy | ±0.02mm(必须项)±0.02mm |
切割能力Shear Ability | 具有切割直线、圆弧、圆、L型和U型的能力（必须项）capable of shear of straight line, arc, circle, L and U shape |
刀具更换系统Blade Replacement | 可手动换刀系统，需工具）Manual, tool is requested |
刀具磨损系统Blade wear | 可智能设定铣刀下刀段数set milling tool by intelligence |
Table数量Table Number | 2个（必须项）2 pieces |
Table功能Table Fuction | 单Table，左右Table交替及并行Table运行方式，设备能实现两个Table同动功能SingleTable，left and right Table works alternantly, two Tables can work simultaneously |
主轴转速Main axis speed | 60000rpm（必须项）60000rpm |
主轴冷却系统Main axis cool down | 风冷方式By cold wind |
集尘方式Dust collection | 外置式上/下集尘（必须项）Built-in dust collector |
工作电源Power Supply | 380V ，50HZ380V ，50HZ |
空压供给Pressure Supply | 0.45Mpa以上0.45Mpa |
治具Jig | 万用治具可供选择Jigs for option or custom |
CCD | IMAGING |
丝杆Ball Screw | Hiwin进口精密研磨滚珠丝杠Hiwin precise grinding ball screw imported |
导轨Lead Rail | Hiwin进口直线加宽导轨Hiwin straight widened lead rail imported |
伺服电机Servo Motor | 松下A6 400W Panasonic |
显示器Monitor | Lenovo |
控制系统Control System | Windows7 |
操作界面Operation Inteface | Windows7 |
编程Program | 在线方式Online |
视觉系统Visual System | RMS视觉分板机系统像素计算型高精度CCD视觉定位校正系统CCD Visual alignment system |
设备尺寸Machine size | L1400mm*W1200mm*H1600mm |
重量Weight | 约780kgApprox 780kg |
底脚可调高度Foot Height adjustable | 50~70mm |
板最大厚度Max.PCB Thickness | 4mm |
整机功率（含集尘器）Power (included dust collector) | 5000w |
最大转速Max Rotation Speed | 60000rpm/min |
冷却方式Cool Down | 气冷+夹具散热cold air and clamp radiating |
更换工具方式Tool replacement | 专用扳手更换by specialized tool |
最大切割精度Shear speed | 0~100mm/s |
最大移动速度Max Moving Speed | 1000mm/s |
切割重复精度Shear Repeat Accuracy | ±0.02mm |
集尘器功率Dust Collector Power | 3.7kw 380v三相电机3.7kw 380v three phase motor |
气压Pressure | 0.6Mpa以上0.6Mpa above |
编辑功能Edit | 直线、孔状、圆弧、圆Straight line, hole, arc, circuit |
配置编程Camera | 高像素彩色CCD Toshiba High Resolution Color CCCD |
轴位置精度Axis Position Accuracy | 0.001mm |
分板精度Accuracy of Shear | ±0.02mm |
